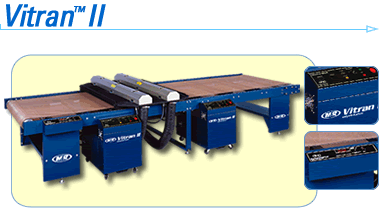

Vitran 2는 Nuarc 특허인 자외선 경화용 이중 반사경(dual-reflector)을 적용한 큐어링 시스템입니다.
다른 경쟁 건조용 시스템에서 볼수 있는 적지않은 에너지 손실 및 느린 동작속도 ,뜨거운 장비온도등을
개선한 장비입니다.

Vitran II는 2개의 반사경을 사용하며, 두번째반사경은 주반사경 위에 위치해 램프위로 반사되어 손실되는
UV에너지를 시료로 향하게 하여 건조(경화) 효율을 높이고 램프의 수명을 연장시킵니다.

Vitran II의 이중반사경은 상부에 배출구가 있어 발생되는 열과 오존을 배출하고 외부의 냉각된 공기를
끌어들여 콘베어위의 시료를 냉각합니다.
Vitran II의 UV램프는 어느특정한시료 (열경화성 비닐..)에 촛점을 마춰 사용하거나
전반적인시료(무거운 금곡이나 유리계열)에 적당하게 조절해 사용할수 있습니다.

Vitran II는 300-watt/inch와 400-watt/inch 그리고 single 과 double lamp 모델이 있습니다.
Vitran II-300 은 125, 200, 250 및 300W로 ; Vitran II-400은 160, 200, 300, 400W로 세팅해
사용할 수 있습니다.





Air Handling
Powerful turbines help keep substrate cool while firmly holding down even lightweight stock
Unique reflector-top opening promotes the venting of heat and ozone and draws cool air across the substrate
Belt Operation
Anodized aluminum conveyor rollers are designed to promote positive belt tracking
Driven by reliable heavy-duty variable speed DC motor
Heat resistant, Teflon?coated fiberglass belt
Solid-state belt speed controller
Solid-state digital belt speed readout for easy duplication of speed settings
Belt Widths
24?(61 cm), 38?(97 cm), 48?(122 cm), 54?(137), 60?(152 cm), & 72?(183 cm)
Bulb Operation
Adjustable-focus UV bulbs adapt to both heat-sensitive and heat-receptive stock
Elapsed digital time meter monitors bulb life
Hinged bulb access for easy maintenance
Models available in single lamp or double lamp design
Control Center
Air-cooled cabinet assures long life for electrical components
Digital amp meter
Mobile control cabinet for easy operator access
Solid-state design
System-Saver allows blowers to continue to run in cooldown mode after reactor shut down, then shuts them off automatically upon reaching programmed temperature
Design & Construction
Assembled and tested at Nuarc뭩 factory to assure turnkey operation
Dual-Reflector System (patent #5,216,820) speeds curing and saves energy
Entry/exit openings are adjustable
Entry/exit UV shields are adjustable
Rigid steel construction
Top-opening design pulls out heated air and ozone and draws ambient air across the belt and substrate to keep the substrate cool during curing
Safety
Interlock system with audible alarm automatically shuts down lamp when reflector hood is lifted
UV Bulb Positioning
Adjustable (focused or unfocused)
Service
24-hour hotline
Training
Access to Nuarc뭩 Training Center
Warranty
One-year limited

Certification
CE Compliant (Built to specifications established by the European Committee for Standardization?
Conveyor Length
Optional lengths available
Electrical
Three-phase models available
Other voltages available

See Vitran II Product Sheet for specifications.

VGU Industries, Inc.
Cleveland, Ohio
"We have six large format UV lines on our floor. When we anticipate a difficult time either with cure, ink considerations, or heat sensitive substrates, we always choose our Vitran UV reactor. It always gives us the fastest, most thorough cure possible. Compared to other dryers, the Vitran provides a tremendous amount of focused energy on the substrate without a lot of heat build-up. This gives everyone on the floor peace of mind, as well as allows us to increase our line speeds for increased production. The Vitran is an excellent dryer choice."

A-1 Sign Company, Inc.
Spokane, Washington
"We run 2 to 3 shifts a day printing Coroplast, wood, polystyrene, metal and paper substrates. Consistent output of UV energy is required for proper curing of UV inks and our Vitran's are always there to do the job right. The Vitran dryers allow us to print one side of the substrate and immediately turn them over and print the other. Reliability is paramount, and the Vitran always keeps its cool. They are proven performers!"

Stone Graphics Co., Inc.
Neptune, New Jersey
"We are very satisfied with our investment in Nuarc equipment. Our Renegade graphics press, Sentry take-off and Vitran U.V. unit area great combination for producing high-quality printing."
