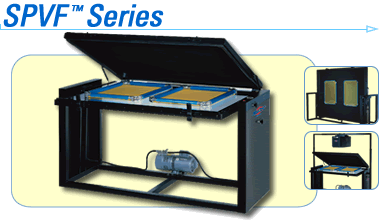

NuArc’s SPVF Series Direct Screen Vacuum Frames are sized for large and multiple screen exposures. These tilting and rotating frames can be positioned anywhere in a 360?arc. This makes it possible to rotate the frame to a vertical position with the option of facing the frame either toward or away from the operator. This allows a freestanding exposure unit to operate from either side of the vacuum frame. Two models, SPVF 3650 and SPVF 5572, can also be rotated 180?to a glass-up horizontal position for exposure from an overhead light source. The SPVF 3650 and SPVF 5572 are also available as wall mounts.

In addition to the eight standard-size models in the SPVF Series, NuArc designs and manufactures custom sizes to match customer requirements. All models in the SPVF Series have NuArc’s exclusive patented vacuum release system. The heavy-duty maintenance-free vacuum pumps provide rapid drawdown. The vacuum blankets are made of exceptionally flexible and resilient material for performance and longevity. These are coupled with NuArc’s custom designed positive-seal blanket bead profile to assure intimate contact between the blanket, the glass, and the screen frame. All models in Nuarc’s SPVF Series are solidly constructed of heavy-duty steel and designed for easy, smooth rotation.

SPVF Series Direct Screen Vacuum Frames are built with NuArc’s attention to quality, durability, and design excellence, and are backed by NuArc’s award-winning service.

Blanket
Blanket frame counterbalanced with hydraulic cylinders
Custom-designed blanket bead profile for positive seal
Design eliminates need for vacuum hose connection to blanket
Exceptionally flexible and resilient material assures intimate contact and longevity
Construction & Design
Ergonomic design
Frame latches made with state-of-the-art material for easy operation and operator comfort
Heavy-duty all steel construction
Optically clear plate glass
Square welded steel structural tubular frame
Electrical Requirements
models are 110v, 1 phase, 10 or 15 amps, 50 or 60 Hz
Exposure Orientation
Rotates 90o from horizontal loading position both toward and away from operator for exposure from either side
Rotates 180o from horizontal loading position for exposure from overhead light source
Vacuum System
Heavy duty maintenance-free vacuum pump for rapid drawdown
Air is drawn from entire perimeter of vacuum frame
Exclusive patented vacuum release system instantly releases vacuum
Fast, quiet, and efficient operation
Oil-free design
Support
24-hour hotline
Training
access to the M&R/NuArc Training Centers
Warranty
one-year limited warranty excluding blanket and glass

Casters

Electrical Requirements
models are 220v, 1 phase, 50 or 60 Hz
Sizes
custom sizes available
