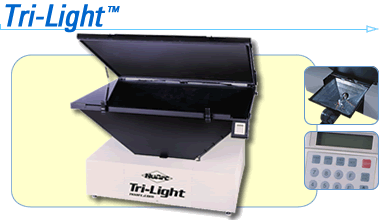

Tri-Light UV ³ë±¤±â´Â NuArcÀÇ Æ¯ÇãÀÎ instant-start power technology¸¦ ä¿ëÇÏ°í ÀÖ¾î,
À¯¸®ÀÇ ¿Âµµ»ó½ÂÀ» °¨¼Ò½ÃÅ°°í Àü·ÂÀÇ ¼Ò¸ð¸¦ ÁÙ¿© Àåºñ¸¦ º¸È£ÇÕ´Ï´Ù.
´ÜÀÏ ±¤¿ø(°í¾Ð ¼öÀºµî)À¸·Î µ¿ÀÛÇÏ´Â ÀÌ ½Ã½ºÅÛÀº °íÃâ·Â ¿¡³ÊÁö¸¦ ÅëÇÑ ºü¸¥ ³ë±¤À¸·Î
ºûÀÇ »ê¶õÀ» ÃÖ¼ÒÈ­ ÇØ º¸´Ù ¼±¸íÇÑ ³ë±¤Ç°ÁúÀ» º¸ÀåÇÕ´Ï´Ù..
3000¿ÍÆ®, 6000¿ÍÆ® µÎ°¡ÁöÀÇ ¸ðµ¨ÀÌ ÀÖÀ¸¸ç,
3000¿ÍÆ® ½Ã½ºÅÛÀº ÇÊ¿ä½Ã 6000¿ÍÆ®·Î ¾÷±×·¹À̵å ÇÒ ¼öµµ ÀÖ½À´Ï´Ù.
¾ÈÀüÀ» À§ÇØ ºí·©Å¶ ÇÁ·¹ÀÓÀÌ ¿­·Á ÀÖ´Â µ¿¾ÈÀº ±¤¿øÀÌ µ¿ÀÛÇÏÁö ¾ÊÀ¸¸ç
Áø°øÇÁ·¹ÀÓÀÌ ÀåÂøµÇ¾î ÀÖ½À´Ï´Ù.
PLC ÄÜÆ®·Ñ·¯¿Í Àû»ê±¤·®°è(light integration system)°¡ ÀåÂøµÇ¾î ÀÖ¾î
Á¤¹ÐÇÑ ·¥ÇÁÀÇ Ãâ·ÂÁ¶Àý ¹× º¸»óÀÌ °¡´ÉÇÕ´Ï´Ù.
ÃÖ´ë ½ºÅ©¸° ÇÁ·¹ÀÓÀÇ ¿Ü°û »çÀÌÁî´Â 107 x 152 cmÀÔ´Ï´Ù.
Tri-Loc Rapid Registration System°ú ¿¬°á »ç¿ëÇÏ¸é °¡Àå È¿°úÀûÀÎ image-to-press ½Ã½ºÅÛÀ»
±¸ÃàÇÒ¼ö ÀÖ½À´Ï´Ù.
Double Tri-LocÀ» »ç¿ëÇϸé ÃÖ¼ÒÇÑÀÇ Ãß°¡·Î Çѹø¿¡ µÎ°³ÀÇ ½ºÅ©¸°À» ó¸®ÇØ µÎ¹èÀÇ »ý»ê¼ºÀ»
¾òÀ»¼ö ÀÖ½À´Ï´Ù.
Tri-LightÀÇ 1/4¸¶·Â º£Å¨ ÆßÇÁ( maintenance-free)´Â ½Å¼ÓÇÑ Áø°ø󸮸¦ °¡´ÉÇÏ°Ô ÇØÁÖ¸ç
NuarcÀÇ µ¶Æ¯ÇÑ manifold systemÀº ºí·©Å¶ÇÁ·¹ÀÓ Æ©ºê»óÀÇ È¦À» ÅëÇØ °ø±â¸¦ ½Å¼ÓÈ÷ »¡¾ÆµéÀÔ´Ï´Ù.
ƯÇãÃâ¿øµÈ Vacuum Release ½Ã½ºÅÛÀº ½Å¼ÓÇÑ release¸¦ °¡´ÉÇÏ°Ô ÇÏ°í
Counterbalanced ºí·©Å¶ ÇÁ·¹ÀÓÀº À¯¾Ð½Ç¸°´õ·Î ÀÛµ¿µÇ¾î ½±°Ô ¿­¸³´Ï´Ù.

104 cmÀÇ ÀÛ¾÷³ôÀÌ´Â no-step access¸¦ °¡´ÉÇÏ°Ô ÇÏ°í, Àåºñ´Â ½±°Ô ºÐÇØÁ¶¸³ÀÌ °¡´ÉÇØ Á¤ºñ°¡ ¿ëÀÌÇÕ´Ï´Ù Tri-Light Àº NuarcÀÇ ¾ÆÁÖ ¿ì¼öÇÑ ´ëÇü ³ë±¤½Ã½ºÅÛÁßÀÇ ÇϳªÀÔ´Ï´Ù.

Blanket
Blanket frame is counterbalanced with pneumatic cylinders
Design eliminates the need for vacuum hose connection to blanket
Exceptionally flexible and resilient material assures intimate contact and blanket longevity
Controller/Integrator
Computer controlled (PLC) and fully programmable
LCD display
Light integrator ensures exact exposure every time
Pushbutton control
Design & Construction
3/8?(9.5 mm) thick glass
2?(5 cm) square welded tubular steel vacuum and glass frames
41?(104 cm) working height for no-step access
Easy access to components to clean or replace any serviceable item
Ergonomic design
Frame latches made with state-of-the-art material for durability, longevity, and operator comfort
Electrical Requirements
6000-watt models: 208/230v, 1 phase, 32/25 amps, 60Hz
3000-watt models: 208/230v, 1 phase, 18/14 amps, 60Hz
Exposure Area
42?x 60?(107 x 152 cm) maximum screen frame OD
Compatible with the Single or Double Tri-Loc?Rapid Registration System from M&R, or a single large frame
Light Source
6000-watt & 3000-watt models
Exposes all emulsions: direct, capillary, and indirect
Instant-start lamp and rapid recovery power supply (U.S. Patent No. 4,339,692) provide shutterless operation
Instant-start lamp eliminates warmup and idling times, saving energy and reducing heat build-up
Lamp is easy to access and change via lamp drawer
Light source delivers fast, efficient exposures
Multi-spectrum metal-halide lamp
Point light source holds fine lines and dots
Shutter-free operation eliminates mechanical complexities
Replacement Lamps
6000-watt models: PM78
3000-watt models: HT162
Size
Floor space requirement: 61?x 75?(155 x 191 cm)
Vacuum frame size (ID): 49?x 68?(124 x 173 cm)
Vacuum System
1/4 HP maintenance-free vacuum pump for rapid drawdown
Air is drawn from the entire perimeter of the vacuum frame
Vacuum release system (U.S. Patent No. 5,481,333) instantly releases vacuum
Support
24-hour hotline
Training
Access to the M&R/NuArc Training Centers
Warranty
One-year limited warranty excluding blanket, glass, and lamps

Electrical Requirements
6000-watt models: 208/230v, 1 phase, 36/27 amps, 50 Hz
3000-watt models: 208/230v, 1 phase, 20/17 amps, 50Hz
Field Upgrade Kit
Upgrades 3000-watt model to 6000 watts
Replacement Lamps
6000-watt models: KT38
3000-watt models: HT121
Tri-Loc Rapid Registration System
Dramatically speeds setup

Model Wattage Screen Frame
Maximum (O.D.)
Vacuum Frame
Size (I.D.)
Overall Size
(HxWxD)
Tri-Light 6K 6000 42" x 60"
(107 x 152 cm)
49" x 68"
(124 x 173 cm)
41" x 61" x 75"
(104 x 155 x 188 cm)
Tri-Light 3K 3000 42" x 60"
(107 x 152 cm)
49" x 68"
(124 x 173 cm)
41" x 61" x 75"
(104 x 155 x 188 cm)
Electrical Requirements* ShippingWeight
208/230v, 1 phase, 32/25 amps, 60Hz
208/230v, 1 phase, 36/27 amps, 50Hz**
1000 lbs.
(454 kg)
208/230v, 1 phase, 18/14 amps, 60Hz
208/230v, 1 phase, 20/17 amps, 50Hz**
1000 lbs.
(454 kg)



Screen Works Inc.
Dayton, OH
“We have more than doubled our production volume with Tri-Light! Exposure systems were a production component we had overlooked for some time, and it was causing quite a bottleneck. With Tri-Light’s two-frame capacity and 75% faster exposure times, we are printing more efficiently and saving on labor too.?
