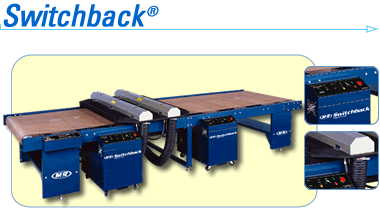

Switchback은 고성능의 자외선건조장치(UV Curing
Machine)입니다.
이 장비는 Nuarc의 특허 반사경기술을 적용하여 출력을 400와트/ 인치 까지 중대시킬수 있으며,
160와트에서 400와트까지 출력을 조절할수 있습니다.
Switchback의 반사경 시스템에서는 세종류의 램프(수은등, 갈륨등 ,페릭 옥사이드등)가 사용가능 합니다.
램프타입은 자동으로 인식되며 세팅이나 점퍼를 변경할 필요가 없습니다.
램프변경시에도 작업자가 단순히 장비에 램프를 꽂으면 끝입니다.
따라서 작업특성에 따라 램프변경이 간단합니다.
선택사양인 듀얼 램프 시스템은 두 개의 반사경에 두가지의 램프를 장착이 가능해 필요에 따라
각각 다른 종류의 램프장착이 가능합니다.
이렇게하면 스위치하나로 시료에 따른 다른종류 램프의 작동이 가능해 작업효율이 획기적으로
향상될수 있습니다.
Air Handling
Powerful turbines help keep substrates cool while firmly holding down
even lightweight stock
Unique reflector-top opening promotes the venting of heat and ozone and
draws cool air across the substrate
Belt Operation
Anodized aluminum conveyor rollers are designed to promote positive belt
tracking
Driven by reliable heavy-duty variable speed DC motor
Heat resistant, Teflon"coated fiberglass belt
Solid-state belt speed controller
Solid-state digital belt speed readout for easy duplication of speed settings
Belt widths
24"(61 cm), 38"(97 cm), 48"(122 cm), 54"(137), 60"(152 cm), & 72"(183
cm)
Bulb Operation
Adjustable-focus UV bulbs adapt to both heat-sensitive and heat-receptive
stock
Elapsed digital time meter monitors bulb life
Hinged bulb access for easy maintenance
Models available in single lamp or double lamp design
Bulb Changing
Change of bulb type requires no corresponding change of jumpers or settings
Bulb Types
Gallium (Optional)
Ferric (Iron) Oxide (Optional)
Mercury Vapor (Standard)
Certification
Panel listed by Underwriter뭩 Laboratories"(UL)
Control Center
Air-cooled cabinet assures long life for electrical components
Digital amp meter
Mobile control cabinet for easy operator access
Solid-state design
System-Saver allows blowers to continue to run in cooldown mode after
reactor shutdown, then shuts them off automatically upon reaching programmed
temperature
Temperature displayed digitally
Design & Construction
Assembled and tested at M&R뭩 factory to assure turnkey operation
Dual-Reflector System (patent #5,216,820) speeds curing and saves energy
Entry/exit openings are adjustable
Entry/exit UV shields are adjustable
Rigid steel construction
Safety
Interlock system with audible alarm automatically shuts down lamp when
reflector hood is lifted
UV Settings
Infinitely adjustable from 160-400 watts per inch
UV Bulb Positioning
Adjustable (focused or unfocused)
Service
24-hour hotline
Training
Access to M&R뭩 Training Center
Warranty
One-year limited
Bulb Types (Optional)
Gallium
Ferric (Iron) Oxide
Certification
CE Compliant (Built to specifications established by the European Committee
for Standardization"
Custom Models
Custom conveyor lengths
Electrical
3-phase models available
Other electrical voltages available
| Model |
Lamp & Belt Width |
Lamps |
Belt Length |
| 24-10 |
24"" (61 cm) |
1 |
10"" (3.05 m) |
| 24-15-2 |
24"" (61 cm) |
2 |
15"" (4.57 m) |
| 38-10 |
38"" (97 cm) |
1 |
10"" (3.05 m) |
| 38-15-2 |
38"" (97 cm) |
2 |
15"" (4.57 m) |
| 48-10 |
48"" (122 cm) |
1 |
10"" (3.05 m) |
| 48-15-2 |
48"" (122 cm) |
2 |
15"" (4.57 m) |
| 54-10 |
54"" (137 cm) |
1 |
10"" (3.05 m) |
| 54-15-2 |
54"" (137 cm) |
2 |
15"" (4.57 m) |
| 60-15 |
60"" (152 cm) |
1 |
15"" (4.57 m) |
| 60-15-2 |
60"" (152 cm) |
2 |
15"" (4.57 m) |
| 72-15 |
72"" (183 cm) |
1 |
15"" (4.57 m) |
| 72-15-2 |
72"" (137 cm) |
2 |
15"" (4.57 m) |
|
| Electrical Requirements*
@400 Watts/Inch |
| Model |
208/230, 1-phase, 60Hz |
208/230v, 3-phase, 60Hz |
460v, 3-phase, 60Hz |
Weight |
| 24-10 |
65/61 amps |
61/58 amps |
28 amps |
2000 lbs
(907 kg) |
| 24-15-2 |
130/122 amps |
122/166 amps |
56 amps |
3400 lbs
(1542 kg) |
| 38-10 |
95/87 amps |
91/83 amps |
41 amps |
2200 lbs
(998 kg) |
| 38-15-2 |
190/174 amps |
182/166 amps |
82 amps |
3700 lbs
(1678 kg) |
| 48-10 |
122/112 amps |
114/104 amps |
52 amps |
2400 lbs
(1089 kg) |
| 48-15-2 |
244/224 amps |
228/208 amps |
104 amps |
4000 lbs
(1814 kg) |
| 54-10 |
134/124 amps |
126/116 amps |
57 amps |
2700 lbs
(1225 kg) |
| 54-15-2 |
268/248 amps |
252/232 amps |
114 amps |
4300 lbs
(1951 kg) |
| 60-15 |
147/135 amps |
|
|
