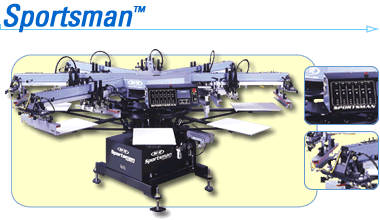

The new M&R Sportsman press allows any shop to move into automation at a price that’s almost too good to be true. Sportsman is designed to fit into most shops, and can even be configured to fit through a standard 31?(78 cm) doorway (optional). Sportsman-available in 6, 8, and 10-color models-offers a large, 16?x 18?(41 x 46 cm) maximum image area. All Sportsman presses offer automatically operated printheads. The carousel on the 6-color model can be manually indexed or it can be automated with a pneumatic cylinder or sophisticated electric servo drive (pneumatic, pneumatic-ready, and servo options must be specified when the order is placed). Servo drive, which combines higher press speeds with exceptional smoothness, consistency, and longevity, is standard on the 8 and 10-color models. Central off-contact adjustment and pneumatic screen clamps are standard, enabling quicker setup and adjustment. Also standard is M&R’s patented Revolver Print Program? which automatically operates individual printheads in programmed sequence and allows multiple flashing without losing a printing position. Revolver also simplifies hard-to-print jobs. Sportsman is compatible with most M&R Flash Cure Units, making it easy to find the flash that’s right for you. Options include M&R’s exclusive Optic Shirt Detector, a foot pedal to control indexing, Squeegee Air Pressure Regulators for quick, easy balancing of squeegee print pressure, and brushless, maintenance-free AC variable-frequency drive motors for the ultimate in print control (front stroke length adjustment comes standard with AC heads).
Printing can be further simplified with M&R’s easy-to-use Tri-Loc?and Double Tri-Loc?Rapid Registration Systems, which allow operators to precisely match registration on the exposure unit with registration on the press. Tri-Loc systems, which work on all M&R manual and automatic carousel textile presses, can reduce setup time by as much as 95%.

Not only is Sportsman easy to afford, it’s easy to set up and operate. Controls are clearly marked and easy to understand, and the control panel features programming and prompts in plain language. Sportsman is constructed of rigid steel & aluminum and premium components. Like all M&R equipment, it’s built with M&R's unsurpassed commitment to quality, durability, and design excellence, and backed by M&R’s unparalleled service and support. If you’re looking for a truly versatile press at a fantastic price, look to Sportsman.

Carousel/Indexer
Counterclockwise rotation (clockwise capability available with servo-drive option)
Freewheel capability
Central Off-Contact
Permits fast, incremental single-lever adjustment of all stations simultaneously
Certification
CE & UL compliant: Built to specifications established by the European Committee for Standardization?(CE) and Underwriters Laboratories?(UL)
Color Capacity (Stations/Colors)
8/6, 10/8, & 12/10
Control Center
Control panel offers easy navigation, with programming and prompts in plain language
Digital keypad with alphanumeric display
Digital microprocessor with self-diagnostics
Independent print start/print finish setting automatically activates and stops print heads at the beginning and end of production runs for operator convenience
Production speed monitor ensures more accurate job costing
Single/Double print stroke capability
Design & Construction
Constructed of rigid steel & aluminum and premium components
Pre-registration performed at the factory
Print heads and pallet arms provide the stability necessary for exceptional print quality
Index System (Pneumatic Drive)
Provides excellent speed and consistency at low cost
Maximum Image Area
16?x 18?(41 x 46 cm)
Pallet System
Three-point pallet leveling system allows easy adjustment
Tool-free pallet locator synchronizes the position of all pallets to speed up pallet changeover
Tool-free quick release locking system for rapid adjustment, installation, and removal
Pallets
Solid-aluminum, low-profile, rubber-coated pallets
Print Carriage
True close-tolerance linear bearing carriage system for uniform ink deposit
Print Heads
Four-point off-contact adjustment on all print heads
Independent print button on each head facilitates test printing
Independent print/flood speed controls on each head simplify press setup and job proofing
Independent reset button on each head enables freewheeling of carousel during setup
Print heads can be added in the field
Registration
Enhanced front micro-registration adjustments with visual guides
Revolver Print Program?/span>
Automatically operates individual print heads in programmed sequence and allows multiple flashing without losing a printing position (U.S. Patent No. 5,595,113)
Simplifies hard-to-print jobs
Screen Clamps & Holders
Adjustable rear screen holders accommodate a wide variety of screen sizes
Clamping system holds roller frames without clamp adapters
Compatible with numerous registration systems, including M&R’s Tri-Loc?and Newman Pin-Lock?
Flip-up front screen holders make setup fast and mid-run screen changes easy
Pneumatic screen clamps facilitate rapid screen loading and deliver excellent stability
Squeegee/Floodbar
Independent squeegee & floodbar speed adjustments
Stroke Length
Calibrated rear stroke length with tool-free adjustment maximizes print speed and efficiency, and reduces the working of ink
Service
24-hour hotline
Training
Access to M&R’s Training Center
Warranty
Two-year limited

Design & Construction
Designed to fit through a 31" (78 cm) doorway
Foot Pedal Control
Allows indexing of the press using a foot pedal instead of the control panel switch
Index System (Manual Drive)
Available only on 6-color models
110v, 1 phase, 2 amps, 50/60 Hz or 220v, 1 phase, 1 amp, 50/60 Hz, both rated at 6.5 CFM @100 PSI
Index System (Pneumatic-ready Manual Drive)
Allows a pneumatic drive to be installed at the customer’s facility at a later date (additional charges apply)
Available only on 6-color models
Index System (Servo Drive)
Combines higher press speeds with exceptional smoothness, consistency, and longevity
Must be ordered & installed at the time of purchase
Standard on 8 and 10-color models
Optic Shirt Detector
Minimizes misprints, facilitates operator training, and allows increased production speed (U.S. Patent No. 5,383,400)
Pallets
M&R offers a wide range of sizes and styles
Print Heads
AC variable-frequency drive motors are brushless, maintenance-free, and offer the ultimate in print control
Available on 8 and 10-color models
Registration
Locking rear micro-registration
Reno Flash
M&R offers a full range of flash cure units
Squeegee/Floodbar
Pneumatic squeegee/floodbar locks with tool-free angle adjustment
Squeegee air regulator with a pressure gauge on each print head
Stroke Length
Front stroke length adjustment standard on AC heads (8 and 10-color models only)
Tri-Loc?& Double Tri-Loc?Rapid Registration Systems
Dramatically speed setup

T-Shirt Productions
Rancho Cordova, California
“I’m very pleased with M&R’s Sportsman Press. It has exceeded my expectations for an entry-level automatic. With its quality construction, easy set-up, smooth operation, and affordable pricing, I’d recommend Sportsman to anyone looking to make the jump from manual to automatic
