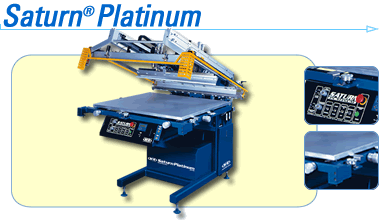

Saturn Platinum 은 작업신뢰성이 우수한 고성능
소형 인쇄기입니다.
대형 고가장비에서나 가능한 제어기능 및 인쇄품질을 얻을수 있으며 정확하고 선명한 인쇄가 가능합니다.
이 장비는 인쇄회로기판(PCB), 명판, 패널, 배크리트 그래픽,플렉시블 멤브레인 스위치, 4 색상 하프톤 인쇄, 유리 세라믹
인쇄 등 정교한 인쇄에 적합합니다.
Saturn Platinum은 가변주파수 드라이브가 장착된 브러쉬리스 AC모터 두 개를사용합니다.
첫번째 모터는 스퀴지캐리지와 프린트플러드를작동시키고 다른하나는 헤드의 상하운동을 하도록 합니다.
스퀴지캐리지와 프린트플러드용 모터는 스피드표시가 디지털로 %상태로 표시되며
아주 정교한 스피드 콘트롤과 놀랄정도로 부드러운 스퀴지 및 플러드바의 작동을 가능하게 해줍니다.
각각의 스퀴지 작동속도와 플러드바 작동속도는 별도로 설정 가능합니다.
Saturn Platinum 은 Nuarcc의 SoftVac 무소음 고진공 시스템을 장착하고 있으며 진공및 blowback
이 독립적으로 조정가능 합니다.
비쥬얼 가이드 기능의 오프-컨택트 마이크로 레지스트레이션은 셋업및 조정을 간단히 신속하게 할수 있게
해주고 자동 싱크로나이즈 되는 cam-driven 필(Peel) 및 조절가능한 앞뒤의 프린트 거리(strock) 센서는
기본 사양에 포함됩니다.
Central Off-Contact
Adjustable tool-free, four-corner off-contact provides for quick and easy
setup
Zero off-contact capability offers greater control over print quality
Certification
Panel meets Underwriters Laboratories?(UL) standards and carries the UL
label
Control Center
Control panel offers easy navigation, with programming and prompts in
plain language
Digital keypad with alphanumeric display
Digital microprocessor with self-diagnostics
Digital readout for print/flood speed adjustments in percentage format
Flood/non-flood setting leaves screen flooded or non-flooded after print
cycle
Squeegee speed, flood speed, and dwell times are independently managed
from the control panel
Design & Construction
Constructed of rigid steel & aluminum and premium components
Cycle interruption feature activated by wraparound printhead bar
Design provides superb operator access
Maintenance-free, brushless AC motors with variable-frequency drives
Ink Dip System
Retrieval system keeps ink in print area (U.S. Patent No. 5,649,479)
Master Frame
Adjustable holder accommodates a wide variety of screen sizes
Detaches from raised head for easy access
Maximum Image Area
15" x 26" (38 x 66 cm), 25" x 38" (64 x 97 cm), and
30" x 40" (76 x 102 cm)
Peel System
Automatically synchronized cam-driven peel
Infinitely adjustable within range
Print Carriage
Dynamic braking prevents the print carriage from drifting into the printing
area
Frequency control AC drive is unsurpassed in delivering smooth squeegee/floodbar
traverse
Heavy-duty chatter-free design
Independent drives for print carriage and head lift
Screen Clamps & Holders
Manual clamps securely lock frame in place
Squeegee/Floodbar
Calibrated independent and micro-adjustable pressure settings
Independent print/flood speed controls
Park position controlled from the digital controller
Pressure and angle adjustments are independently set for superior print
quality
Squeegee and floodbar traverse speeds can be set individually
Tool-free squeegee/floodbar angle adjustment
Stroke Length Sensors
Adjustable (tool-free) front & rear stroke sensors located on the
print head
Vacuum System
CNC-drilled 1" (2.54 cm) thick heavy-gauge anodized aluminum vacuum
bed
SoftVac?whisper-quiet, high-volume vacuum system
Vacuum and blowback are each independent and adjustable
Service
24-hour hotline
Training
Access to M&R's Training Center
Warranty
One-year limited
Certification
CE Compliant (Built to specifications established by the European Committee
for Standardization?
Control Center
Separate independent foot pedals for hands-free, single-cycle printing
and for vacuum control
Print Bed Registration
Moveable pins for rigid substrates
Round or square pins뾣ixed location
X & Y direction analog dial indicators
Screen Clamps & Holders
Pneumatic screen clamps facilitate rapid screen loading and deliver excellent
stability on a wide variety of screens
Sentry?Takeoff
Fully adjustable gripper-style adapts to virtually any substrate
Squeegee/Floodbar
Dripless squeegee attachment automatically moves the squeegee over the
floodbar before the flood stroke to prevent ink from dripping into the
print area
Pneumatic squeegee/floodbar locks
Squeegee pressure equalizer regulator ensures uniform squeegee pressure
| Saturn Model |
Maximum
Image Area |
Maximum OD
Frame Size |
Vacuum Bed
OD Size |
Total Floor Area |
Air @ 100 PSI |
| Platinum 1526 |
15" x 26"
(38 x 66 cm) |
32" x 38" x 2.25"
(81 x 97 x 5.7 cm) |
25" x 32"
(64 x 81 cm) |
39.25" x 48"
(100 x 122 cm) |
3 scfm |
| Platinum 2538 |
25" x 38"
(64 x 97 cm) |
42" x 50" x 2.25"
(106 x 127 x 5.7 cm) |
35" x 44"
(89 x 112 cm) |
54.25" x 58"
(138 x 147 cm) |
3 scfm |
| Platinum 3040 |
30" x 40"
(76 x 102 cm) |
47" x 52" x 2.25"
(121 x 133 x 5.7 cm) |
40" x 44"
(102 x 112 cm) |
54.25" x 63"
(138 x 160 cm) |
3 scfm |
| Electrical Requirements* |
Sentry Takeoff Floor Area |
Total Length with Takeoff |
Takeoff Electrical Requirements* |
Shipping Weight |
| 208/230v, 1 phase, 14 amps, 60 Hz** |
82" x 26"
(208 x 66 cm) |
118"
(300 cm) |
208/230v, 1 phase, 4.0 amps, 60 Hz** |
1200 lbs
(544 kg) |
| 208/230v, 1 phase, 14 amps, 60 Hz** |
86" x 36"
(218 x 91 cm) |
134"
(340 cm) |
208/230v, 1 phase, 4.0 amps, 60 Hz** |
1400 lbs
(635 kg) |
| 208/230v, 1 phase, 14 amps, 60 Hz** |
86" x 41"
(218 x 104 cm) |
134"
(340 cm) |
208/230v, 1 phase, 4.0 amps, 60 Hz** |
1600 lbs
(726 kg) |
* If incoming voltage differs from the voltage(s) listed in this brochure,
calculate amperage accordingly
** Other electrical configurations available: Contact M&R for details
|
