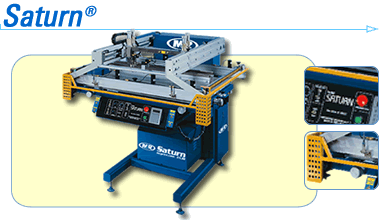

SaturnÀº ´ëÇü °í°¡Àåºñ¿¡¼­³ª °¡´ÉÇÑ ½Å¼ÓÇÏ°í Á¤±³ÇÑ Àμ⸦ °¡´ÉÇÏ°Ô ÇØÁÖ´Â
¼ÒÇü ±×·¡ÇÈ Àμâ±âÀÔ´Ï´Ù.
µÎ °³ÀÇ ¸ðÅÍ°¡ ÀåÂøµÇ¾î ÀÖ¾î Çϳª´Â Àμâ±âÀÇ »óÇÏ ¿îµ¿¿¡, ´Ù¸¥ Çϳª´Â ÇÁ¸°Æ®/Ç÷¯µå(flood)¿¡ »ç¿ëµË´Ï´Ù

°¢ ¸ðÅÍ´Â µ¶¸³ÀûÀ¸·Î ÀÛµ¿ÇÏ¸ç µðÁöÅÐ Å°Æеå´Â ÇÁ·Î±×·¥À» ¿ëÀÌÇÏ°Ô Çϸç, ÄÜÆ®·Ñ·¯´Â ÀÚ°¡Áø´Ü ±â´ÉÀ» Á¦°øÇÕ´Ï´Ù.

¸ð´ÏÅͻ󿡼­ »ý»ê¼Óµµ ¸ð´ÏÅ͸µÀÌ °¡´ÉÇÏ¸ç ºñÁê¾ó °¡ÀÌµå ±â´ÉÀÇ ¿ÀÇÁ-ÄÁÅÃÆ® ¸¶ÀÌÅ©·Î ·¹Áö½ºÆ®·¹À̼ÇÀº ¼Â¾÷¹× Á¶Á¤À» °£´ÜÈ÷ ½Å¼ÓÇÏ°Ô ÇÒ¼ö ÀÖ°Ô ÇØÁÝ´Ï´Ù.

´ÙÀ̳»¹Í ÇÊ, Á¶Àý°¡´ÉÇÑ ºí·Î¿ì¹é(blow-back), ±×¸®°í Á¶Àý°¡´ÉÇÑ ÀüÈÄ ÇÁ¸°Æ® ½ºÆ®·ÎÅ© ¼¾¼­´Â ±âº»
»ç¾ç¿¡ Æ÷ÇԵǾî ÀÖ½À´Ï´Ù.


Certification
Panel meets Underwriters Laboratories?(UL) standards and carries the UL label
Control Center
Control panel offers easy navigation, with programming and prompts in plain language
Digital keypad with alphanumeric display
Digital microprocessor with self-diagnostics
Dwell and load station vacuum times are independently managed from the control panel
Flood/non-flood setting leaves screen flooded or non-flooded after print cycle
Production speed monitor ensures more accurate job costing
Design and Construction
Constructed of rigid steel & aluminum and premium components
Cycle interruption bars and light beams stop press when activated
Design provides superb operator access
Master Frame
Detaches from raised head for easy access
Maximum Image Area
15" x 26" (38 x 66 cm), 25" x 38" (64 x 97 cm), and 30" x 40" (76 x 102 cm)
Off-Contact
Four-corner off-contact settings allow quick and accurate screen leveling
Zero off-contact capability offers greater control over print quality
Peel System
Automatically synchronized cam-driven peel
Infinitely adjustable within range
Print Carriage
Adjustable, tool-free front and rear sensors located on the printhead
Dynamic braking prevents the print carriage from drifting into the printing area
Hardened steel tracks provide years of smooth, vibration-free printing
Heavy-duty design
Independent drives for print carriage and head lift
Screen Clamps & Holders
Adjustable screen holders accommodate a wide variety of screen sizes
Manual clamps securely lock frame in place
Squeegees/Floodbars
Calibrated independent and micro-adjustable pressure settings
Squeegee and floodbar traverse speeds can be set individually
Squeegee pressure equalizer regulator ensures uniform squeegee pressure
Tool-free pressure and angle adjustments are independently set for superior print quality
Vacuum System
CNC-drilled 1" (2.54 cm) thick heavy-gauge anodized aluminum vacuum bed
SoftVac?whisper-quiet, high-volume vacuum system
Service
24-hour hotline
Training
Access to M&R's Training Center
Warranty
One-year limited


Certification
CE Compliant (Built to specifications established by the European Committee for Standardization?
Print Bed Registration
Round or square pins—fixed location
Screen Clamps & Holders
Pneumatic screen clamps facilitate rapid screen loading and deliver excellent stability on a wide variety of screens
Squeegee/Floodbar
Pneumatic squeegee/floodbar locks
Takeoff System
M&R's Sentry?is a fully adjustable gripper-style takeoff that adapts to virtually any substrate



Model Maximum
Image Area
Maximum
Frame Size
Vacuum Bed
Size
Total Floor Area Air @ 100 PSI
Saturn 1526 15" x 26"
(38 x 66 cm)
32" x 38" x 2.25"
(81 x 97 x 5.7 cm)
25" x 32"
(64 x 81 cm)
39.25" x 48"
(100 x 122 cm)
3 scfm
Saturn 2538 25" x 38"
(64 x 97 cm)
42" x 50" x 2.25"
(106 x 127 x 5.7 cm)
35" x 44"
(89 x 112 cm)
54.25" x 58"
(138 x 147 cm)
3 scfm
Saturn 3040 30" x 40"
(76 x 102 cm)
47" x 52" x 2.25"
(121 x 133 x 5.7 cm)
40" x 44"
(102 x 112 cm)
54.25" x 63"
(138 x 160 cm)
3 scfm

Electrical Requirements* Sentry Takeoff Floor Area Total Length with Takeoff Takeoff Electrical Requirements* Shipping Weight
110v, 1 phase
15 amps, 60 Hz**
82" x 26"
(208 x 66 cm)
118"
(3.0 m)
110v, 1 phase
4 amps, 60 Hz**
1200 lbs
(544 kg)
110v, 1 phase
15 amps, 60 Hz**
86" x 36"
(218 x 91 cm)
134"
(3.4 m)
110v, 1 phase
4.0 amps, 60 Hz**
1400 lbs
(635 kg)
110v, 1 phase
15 amps, 60 Hz**
86" x 41"
(218 x 104 cm)
134"
(3.4 m)
110v, 1 phase
4.0 amps, 60 Hz**
1600 lbs
(726 kg)

* If incoming voltage differs from the voltage(s) listed in this brochure, calculate amperage accordingly
** Other electrical configurations available: Contact M&R for details
