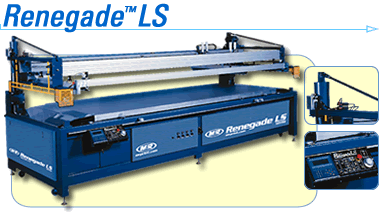

Renegade LS´Â ·¹´Ï°ÔÀ̵å Á¦Ç°±º Áß °¡Àå ´ëÇüÀ̸ç NuarcÀÇ °¡Àå Çõ½ÅÀûÀÎ Æò»óÇü ±×·¡ÇÈ Àμâ±â(flat bed graphic press)ÀÔ´Ï´Ù.
Renegade LS ´Â Ä¿Æÿ§Áö¿ë ¸¶ÀÌÅ©·ÎÇÁ·Î¼¼¼­ ±â¼ú, ÀÛ¾÷ÀÚ¸¦ À§ÇÑ ¼¼·ÃµÈ ÄÜÆ®·Ñ±â´É, µðÁöÅÐ Å°Æеå, ½¬¿î ÇÁ·Î±×·¡¹Ö, »ý»ê¼Óµµ ¸ð´ÏÅ͸µ, ÀÚ°¡Áø´Ü ±â´É ¹× ÇÁ·Î±×·¥ ÀúÀå ±â´ÉÀ» Á¦°øÇÕ´Ï´Ù.
µô·¹ÀÌ, Peel Ratio,ÀÛ¾÷½Ã°£,µî ¿©·¯Ç׸ñÀÇ ¼³Á¤¹× ÀúÀåÀÌ °¡´ÉÇØ ºí·Î¿ì¹é¹× º£Å¨ÀÇ ½ÃÀ۽𣠹×
ÁøÇà½Ã°£µµ ¼³Á¤ °¡´ÉÇÕ´Ï´Ù.
ÀÌ·±¼³Á¤Àº ÃßÈÄ À¯»çÇÑ ÀÛ¾÷ ÇÊ¿ä½Ã ¼³Á¤³»¿ëÀ» Àç·ÎµùÇÏ¸é ¿øÇÏ´ÂÀÛ¾÷ÀÇ ¹Ýº¹ÀÛ¾÷ÀÌ °¡´ÉÇÏ°Ô ÇØÁÝ´Ï´Ù.

Renegade LS´Â ¿ª½Ã Àü¸é¿¡¼­ ½ºÅ©¸°À» ·ÎµùÇϸç, ¸ÖƼ ÇÁ¸°ÆÃ, ¹«ÇÑÇÑ ÇÊ Á¶Á¤(peel adjustment)±â´É
±×¸®°í ´ÙÀ̾ó·Î 0.0025cm´ÜÀ§·Î Áø°ø º£µå ·¹Áö½ºÆ®·¹ÀÌ¼Ç Á¶ÀÛÀ» °¡´ÉÇϵµ·Ï ÇÕ´Ï´Ù.

°ß°íÇÑ 13cmÁ÷°æÀÇ ¸®ÇÁÆ®¿ë °­Ã¶ ¿øÇü±âµÕ °ú °­Ã¶Æ®·¢À§ÀÇ º£¾î¸µÀåÂø ÇÁ¸°Æ®Ä³¸®Áö´Â ¹Ý¿µ±¸ÀûÀ¸·Î
¹«Áøµ¿ ÇÁ¸°ÆÃ¹× ºÎµå·¯¿î ÀÛµ¿À» º¸ÀåÇÕ´Ï´Ù.
Renegade LSÀÇ ÇÁ¸°Æ®Çìµå¿Í ¸¶½ºÅÍ ÇÁ·¹ÀÓÀº °í°­µµ ´ÙÀÌij½ºÆà ¾Ë¹Ì´½ÇÕ±ÝÀ¸·Î µÇ¾î ÀÖ¾î
±âÁ¸Á¦Ç°º¸´Ù °­ÇÑ ³»±¸¼ºÀ» °®½À´Ï´Ù.

Renegade LS ´Â Æ÷½ºÅÍ, ¹è³Ê, ºñ´Ò, Çø®Æ® ¸¶Å·, À¯¸®, ±Ý¼Ó, µð½ºÇ÷¹ÀÌ ÆгΠµî ´ëÇü Æò¸é¿¡ ÀμⰡ
°¡´ÉÇϸç
Renegade LS´Â 1.32 X 2.49 mºÎÅÍ 1.57 X 3.76 m±îÁö ³ÐÀº ¹üÀ§ÀÇ ÀμⰡ °¡´ÉÇÕ´Ï´Ù.



Certification
Panel listed by Underwriter's Laboratories?(UL)
Control Center
Digital keypad with alphanumeric display
Digital microprocessor with self-diagnostics
Job recall allows storage and recall of settings for delay, peel ratio, dwell time, and start and duration times for blowback and vacuum
Multi-print capability
Production speed monitor for more accurate job costing
Programming & prompts in plain language
Squeegee speed, flood speed, and dwell times are independently managed from the control panel
Two independent foot pedals: one for hands-free single cycle printing; one for vacuum control
Design and Construction
Extruded aluminum print heads and master frame for strength and durability
Hardened steel tracks for years of smooth, vibration-free printing
Rugged all-steel chassis
Ink Dip System
Patented retrieval system keeps ink in print area (Patent # 5,649,479)
Lift Operation
5?(13 cm) diameter lift columns of hardened steel
Low lift feature speeds cycle time
Peel
Automatically synchronized gear-driven peel
Flat flood Feature
Infinitely adjustable within range
Print Carriage
Adjustable (tool-free) left and right sensors located on the front of the print head
Electronic braking to keep print carriage out of printing area
Heavy-duty chatter-free design
Independent drives for print carriage and head lift
Maintenance-free brushless AC motors adjust speed by frequency variation with constant torque
Print Sizes Available
52?X 98?(1.32 X 2.49 m), 52?X 124?(1.32 X 3.15 m), 52?X 148?(1.32?X 3.76 m), 62?X 148?(1.57 X 3.76 m)
Safety
Infrared light beams and wrap-around safety bar on either side of the head
Safety system triggers dynamic braking, reverses print head, and stops all movement when activated
Screen Holders
Adjustable screen holders accommodate a wide variety of screen sizes
Tool-free, four corner off-contact settings allow quick and accurate screen placement at all four corners
Zero off-contact capability offers greater control over print quality
Squeegees/Floodbars
Adjustable pneumatic squeegee pressure equalizer maintains uniform pressure across length of squeegee
Flood/non-flood setting leaves screen flooded or non-flooded after print cycle
Independent print/flood speed controls
Park position allows flood and squeegee to be raised and moved to left or right without flooding or printing, and allows easy squeegee and floodbar installation and removal
Tool-free angle adjustment
Vacuum System
Blowback and vacuum pressure control easily adjusts to different stock types and thickness
Dial indicators for vacuum bed adjustment in .001?(.0025 cm) increments
CNC-drilled 3?(7.62 cm) high heavy-gauge anodized aluminum vacuum bed, engineered to stay flat
High volume vacuum turbine system with blowback
Up-front access for easy setup and adjustment
Service
24-hour hotline
Training
Access to Nuarc’s Training Center
Warranty
One-year limited

Certification
CE Compliant: Built to specifications established by the European Committee for Standardization?(CE)
Control Center
Management Production Software
Modem with cable and module
Peel
Stepper motor on peel with single-point fingertip control
Registration System
Registration Pins (round or square pins available)
Screen Clamps
Pneumatic screen clamps securely lock frame in place
Sentry?Takeoff
Fully adjustable gripper-style adapts to virtually any substrate
Squeegees/Floodbars
Dripless squeegee attachment automatically flips to opposite direction against front of floodbar before flood stroke begins, preventing ink from dripping
Pneumatic squeegee/floodbar air locks
Skewed squeegee holder

Model Maximum Image Maximum OD Frame Size Vacuum Bed OD Size Total Floor Area
Renegade LS 5298 52?x 98?br> (1.32 x 2.49 m) 76?x 132?x 2.5?br> (193 x 335 x 6.4 cm) 60?x 116?br> (1.52 x 2.95 m) 162”x71.5?br> (4.11x 1.82 m)
Renegade LS 52124 52?x 124?br> (1.32 x 3.15 m) 76?x 156?x 2.5?br> (193x 396 x 6.4 cm) 60?x 140?br> (1.52 x 3.56 m) 186”x71.5?br> (4.72x 1.82 m)
Renegade LS 52148 52?x 148?br> (1.32?x 3.76 m) 76?x 180?x 2.5?br> (193 x 457 x 6.4 cm) 60?x 164?br> (1.52 x 4.17 m) 210”x71.5?br> (5.33 x 1.82 m)
Renegade LS 62148 62?x 148?br> (1.57 x 3.76 m) 86?x 180?x 2.5?br> (218 x 457 x 6.4 cm) 72?x 164?br> (1.83 x 4.17 m) 210”x81.5?br> (5.33x 2.07 m)

Model Air @ 100 PSI Electrical Requirements* Sentry Takeoff Floor Area Takeoff Electrical Requirements* Weight
Renegade LS 5298 4 scfm 208/230v, 3 phase 30 amps, 50/60 Hz 190”x 65?br> (4.83 x 1.65 m) 208/230v, 3 phase4 amps, 50/60 Hz 4500 lbs.
(2041 kg)
Renegade LS 52124 4 scfm 208/230v, 3 phase30 amps, 50/60 Hz 218?x 65?br> (5.54 x 1.65 m) 208/230v, 3 phase4 amps, 50/60 Hz 5500 lbs.
(2495 kg)
Renegade LS 52148 4 scfm 208/230v, 3 phase30 amps, 50/60 Hz 242?x 65?br> (6.15 x 1.65 m) 208/230v, 3 phase4 amps, 50/60 Hz 6500 lbs.
(2949 kg)
Renegade LS 62148 4 scfm 208/230v, 3 phase30 amps, 50/60 Hz 242?x 75?br> (6.15 x 1.91 m) 208/230v, 3 phase4 amps, 50/60 Hz 7500 lbs.
(3402 kg)

* If incoming voltage differs from the voltage(s) listed in this brochure, calculate amperage accordingly

Banners Plus/Multiscreen
Richmondhill, Ontario
"The Renegade Longstroke that we purchased at the SGIA show in Las Vegas is proof that Nuarc can improve upon excellence. We’ve had a Patriot Longstroke for over 5 years now, and with our new Renegade, we now have 2 of these ‘beauties? The ease of use and exacting registration make them the perfect production ‘beasts? Both presses are ideally suited for a wide variety of large-format printing and most particularly, producing quality banners on flexible substrates."
