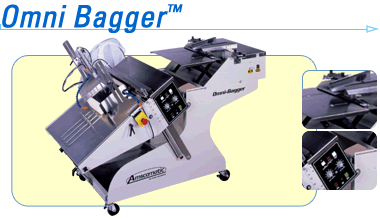

Omni-Bagger is Amscomatic's combined bag loading and sealing system. This single-bag station is ideal for use where total packaging requirements can be handled through one station, or where bag-packaging operations are decentralized.

The bag loading section features a drop-load wicket holder and slide-and-lock positioning to accommodate varied bag lengths. The entering horns are specifically engineered to the product's shape to promote rapid bag loading. Prior to sealing the bag, the pneumatic compression plate gently squeezes the product to eliminate excess air and give the product a more attractive appearance. The bag-sealing section features a seal-centering deck that can be quickly adjusted to different product dimensions. The durable, high-temperature seal bar is programmable and incorporates an automatic trim plate. It creates an attractive, airtight seal, and the trim plate mechanically trims the bag top and pneumatically disposes of the waste. If the seal bar encounters and obstruction on its way to the seal element, Omni-Bagger will automatically shut down and remain offline until manually reset.

Omni-Bagger is engineered for dependable performance and low maintenance in demanding environments. Its sturdy and compact unitized frame is made with high-quality materials and premium components for durable, long-lasting performance and smooth, quiet operation. Like all Amscomatic products, the Omni-Bagger bagger/sealer is built with Amscomatic's attention to quality, durability, and design excellence, and is backed by Amscomatic's unsurpassed service and support.

Bagger/Sealer
Adjustable compression height
Air filter system on blower
Drop-in wicket loader
Entering horns configured to product size
High-speed/high-temperature sealing
Positive bag support system
Control Center
Compression on/off switch
Dwell control
Emergency stop reset button
Heat control
Manual cycle switch
On/Off switch
Design & Construction
Adjustable seal bar height
Adjustable seal-centering table
Built of high-quality materials and premium components
Compact, ergonomic design
Horizontal and vertical adjustability
Low maintenance
Positive waste removal
Slide-and-lock positioning
Package Size Range
Length: 4”–24?(10?1 cm)
Thickness: 1/8”–10?(3.2 mm?5.4 cm)
Width: 1”–18?(2.5?5.7 cm)
Other sizes available
Support
24-hour hotline
Training
Access to the M&R/Amscomatic Training Centers
Warranty
One-year limited


Custom Integration
Integrates the C-500 into existing manufacturing lines
Package Sizes
Machines can be custom built to accommodate other package sizes
Trasfer Unit
Provides positive product discharge
Washdown Model


See Omni-Bagger Product Sheet for specifications.
