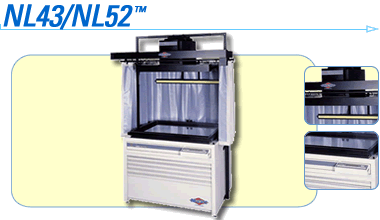

NL43 & NL52 노광시스템은6000W,3000W,1000W메탈할라이드 고압 수은등을 사용합니다.

NuArc의 특허인 인스턴트 베큠시스템이 적용되어 프레임당 2개의 펌프를 사용하는데 하나의 펌프는
진공을 위한 공기흡입용 주펌프로 사용되고 다른하나는 완벽한 접착을 위한 추가압력용으로
사용됩니다.

수동형 커튼, 자동 글래스프레임 오프너,충분한 크기의 드로워 공간,그리고 122cm의 길이의 YELLOW
인스펙터용 등이 장착되어 있습니다.

EZ-Plus 30채널의 적산광량콘트롤러는 노광강도및 시간,진공시간,필터의 작동(설치되어 있을 경우)
포토셀의 선택등을 제어해 원하는 노광을 정확하게 제어하게 해줍니다.

NuArc의 새로개발된 비례온도콘트롤시스템( Proportional Temperature Control-PTC)은
획기적으로 에너지 소모 및 열발산을 감소시켜주며 적당한 램프온도 유지.고효율의 램프출력등을
가능하게 해줍니다.

옵션품목인 phenomenal SmartONE 컴퓨터제어 시스템은 모든작동의 자동화 및 사용자에 적합하게 설정하는걸 가능하게 해줍니다.

또다른 옵션으로는 오토매틱 커튼시스템,오토매틱 디퓨전,오토매틱 kOkOMO /클리어링 필터등을
선택할수 있습니다.

노광범위 : 아래참조

Controller/Integrator
EZ-Plus?30-memory controller/integrator controls the duration and intensity of exposure, the operation of motorized filters (if installed), and the selection of photocell, vacuum, and pressure times
Design & Construction
5 oversized drawers
48?(122 cm) yellow safe light
Attractive, compact design
Easily negotiates a 36?(91 cm) opening when disassembled (rewiring not required)
Gas lift-arm assisted glass frame opening
Heavy-duty all-steel cabinet
Overhead curtain assembly with posts and brackets
Electrical Requirements*
208/230v, 34/26 amps, 1 phase, 60 Hz
Light Source
6000/3000/1000-watt multi-spectrum metal-halide lamp
Light source is height adjustable
Proportional Temperature Control (PTC) reduces ambient heat during daily operation, reduces energy consumption, and improves control over lamp operating temperature
Removable reflector for easy lamp replacement
NuVac Instant Vacuum System
Assures highest resolution, intimate contact, and perfect registration in seconds
Automatically creates channels that act as bleeder strips to evacuate air swiftly and systematically
Heavy-duty maintenance-free vacuum pump for rapid drawdown
Patented (U.S. Patent No. 4,935,773)
Speeds drawdown and keeps materials registered
Size (WxD)***
NL43: 67?x 51?(170 x 130 cm)
NL52: 77?x 59?(196 x 150 cm)
Support
24-hour hotline
Training
Access to the M&R/NuArc Training Centers
Warranty
One-year limited warranty excluding glass and lamps

Automatic Curtain
Motor-driven curtain assembly
Electrical Requirements*
208/230v, 38/29 amps, 1 phase, 50 Hz
Filters
Manual Kokomo & Clearing Filters (MC292)
Motorized Kokomo & Clearing Filters (NL160)
Replacement Lamps
LY33
MH153
SmartONE?Computer Exposure System
Automatic lamp calibration
Computes compensation and new exposure times
Controls exposure (duration & intensity), photocell selection, automatic curtain (if installed), color sequencing, vacuum & pressure duration, compensation factors, and motorized filter (if installed)
Extremely user friendly
Keeps count of total exposures
Lamp monitoring system
LCD backlit screen
Lock code available to protect exposure settings
Menu-driven computer allows materials to be stored by brand name
Monitors lamp life
Selection of user-assigned name automatically sets all user-programmed parameters
Sequences exposures

* If incoming voltage differs from the voltage(s) listed in this brochure, calculate amperage accordingly
** Optional
*** All models require minimum ceiling height of 8' (244 cm)
