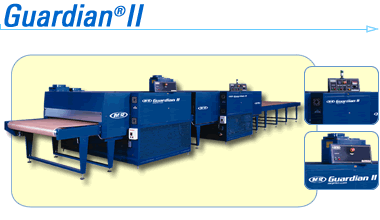

Guardian II 는 Nuarc의 그래픽프린팅용 개스 가열방식드라이어(graphics
dryer)입니다.
버너는 최고효율의 열전달이 가능하도록 디자인 되었고 고성능 송풍기와 열분배시스템 으로
히트챔버 내부에 균일한 열전달이 가능합니다.
Guardian II의 열효율 시스템은 강력한 건조능력과 내부탱크로부터 찬공기를 가열시키는 방식의
독특한 에너지 전달시스템을 사용해 에너지비용을 절감시켜줍니다.
작업자는 건물의 내부나 외부의 공기를 사용 할 수 있으며 Guardian II의 다기능 모듈디자인과
광범위한 설정기능은 쉽고 경제적인 사용을 가능하게 합니다.
Guardian II는 LP개스나 천연 개스를 사용하며 편의성과 안전성을 위해서 가열이 멈춘 후에도 벨트와 블로워가
설정된 냉각 온도에 도달할 때까지 시스템을 작동 시킵니다.
Guardian II 는 디지털 스피드 콘트롤러, 편리한 스피드 세팅용 디스플레이, 쉬운 정비를 위한
슬라이드아웃 스텐레스 필터를 장착합니다.
Guardian II 는 자동 인공지능 온도 콘트롤러가 내장되어 정확한 온도조절이 가능하며 연료절감효과가 뛰어납니다.
Guardian II 의 선택사양은 일반 공기 또는 냉각에어쿨링 유닛, 고속 콘베어, 개별적으로 속도 및 방향변화가
가능한 스플릿 벨트 콘베어가 있으며 옵션으로 Switchback, Vitran II, UV Curing Module을
장착 할 수 있습니다.
Guardian II 개스 건조기(Gas Dryer)는 벨트폭 122 cm, 152 cm, 183 cm, 213 cm 의 사양이
있습니다.
Air Handling
Air Intake: approximately 1500 SCFM
Exhaust Blower: approximately 1500 SCFM
Heat Efficiency System reduces operating expenses by using hot exhausted
air to heat incoming air
Powerful blowers circulate heat while holding down even the lightest substrates
Stainless steel filters slide out for easy cleaning
Certification
AGA?& CGA?approved (design certified by the American and Canadian
Gas Associations to meet or exceed national safety standards for design
and performance)
Gas controls meet standards set by Factory Mutual?and by the National
Fire Protection Association?(NFPA)
Panel meets Underwriter's Laboratories?(UL) standards and carries the
UL label
Control Center
Air-cooled cabinet assures long life for electrical components
Control panel rotates for easy access
Fuzzy-Logic temperature controller program learns to modulate dryer process
temperature progressively more accurately as the dryer runs, ensuring
the ultimate in curing consistency
Process temperature and set temperature are displayed and controlled digitally
Solid-state design
System-Saver allows blowers and belt to continue to run in cooldown mode
after burner shutdown, then shut off automatically upon reaching the cooldown
target temperature
Conveyor Belt Width
48?(122 cm), 60?(152 cm), 72?(183 cm), and 84?(213 cm)
Custom sizes available
Conveyor System
Conveyor belt is made of heat resistant, Teflon?coated fiberglass
Driven by a reliable, heavy-duty, variable speed DC motor
Large diameter crowned aluminum conveyor rollers promote positive belt
tracking
Solid-state belt speed controller
Solid-state digital belt speed readout makes it easy to duplicate speed
settings
Standard belt speed: 6?65?(183-1981 cm) per minute
Standard infeed/outfeed lengths: 4' (122 cm)
Specialized joining fasteners simplify the connection of additional heat
chamber units
Design & Construction
Adjustable entry/exit openings
Assembled and tested at Nuarc뭩 factory to assure turnkey operation
Bearings are designed for high speeds and high temperatures
Constructed of rigid steel and premium components
Designed for maximum thermal efficiency
Modular design simplifies future expansion
Heat Chamber
Burners are available in a choice of liquid propane (LP) or natural gas
Direct-fired burner is maximum-rated at 400,000 BTU
Double-wall construction
Galvanized steel interior
Interior air distribution system assures uniformity and consistency of
temperature
Modular gas train simplifies maintenance
Pressurized vector air knives provide uniform temperatures throughout
the drying chamber
Service
24-hour hotline
Training
Access to Nuarc뭩 Training Center
Warranty
One-year limited
Certification
CE Compliant (Built to specifications established by the European Committee
for Standardization?
Conveyor System
Available with conveyor speeds faster than the standard rates listed
Conveyor extension sections are available in 1' (30 cm) increments
Split belt model with independent drives features reversible direction
and variable speed
Cooling Unit
Ambient air
Refrigerated air
Electrical
Available in single-phase
Other configurations available
Heat Chamber
Additional 2?(61 cm) sections available
UV Curing Modules
Switchback?
Vitran II?
| Model |
Belt Width |
Heat Chamber Length |
Infeed / Outfeed Lengths |
Intake Air Maximum |
Exhaust Air Maximum |
| Guardian II-48 |
48"
(122 cm) |
10'
(305 cm) |
In: 4'/Out: 4'
(122 cm/122 cm) |
1,500 scfm |
1,500 scfm |
| Guardian II-60 |
60"
(152 cm) |
10'
(305 cm) |
In: 4'/Out: 4'
(122 cm/122 cm) |
1,500 scfm |
1,500 scfm |
| Guardian II-72 |
72"
(183 cm) |
10'
(305 cm) |
In: 4'/Out: 4'
(122 cm/122 cm) |
1,500 scfm |
1,500 scfm |
| Guardian II-84 |
84"
(213 cm) |
10'
(305 cm) |
In: 4'/Out: 4'
(122 cm/122 cm) |
1,500 scfm |
1,500 scfm |
| Electrical Requirements* |
Burner Input
Maximum BTU** |
ShippingWeight |
208/230/460v, 3 phase
20/18/9 amps, 60 Hz |
400,000 |
3500 lbs
(1588 kg) |
208/230/460v, 3 phase
24/22/11 amps, 60 Hz |
400,000 |
4000 lbs
(1814 kg) |
208/230/460v, 3 phase
30/28/14 amps, 60 Hz |
400,000 |
4500 lbs
(2041 kg) |
208/230/460v, 3 phase
30/28/14 amps, 60 Hz |
400,000 |
5000 lbs
(2268 kg) |
* If incoming voltage differs from the voltage(s) listed
in this brochure, calculate amperage accordingly
* Other burner sizes available
|
