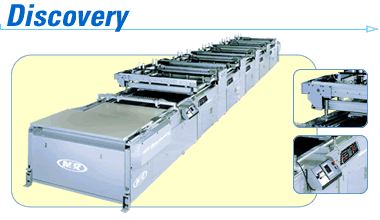

Discovery는 112 x 163 cm의 최대 이미지 사이즈를 제공하는 M&R의 멀티칼러 Inline UV Print/Cure System으로서 M&R의 Advantage와 Processor Series 의 인라인 프레스 중간 규모의 시스템 입니다.

Discovery는 전자제어방식의 중앙 Off-Contact 및 스퀴지와 플러드바(flood-bar)를 남겨놓은채로 스크린을
쉽게 언로드할수 있게 해주는 하이-리프트 캐리지 로 셋업 및 Teardown 시간을 절약할수 있으며 ,
플러드바 전면의 반대방향으로 자동으로 접어주는 옵션장치인 dripless 스퀴지를 부착하면
플러드스트록(flood strock)이 시작되기전에 잉크가 프린팅하려는 이미지로 흘러들어가는 것을 방지해줍니다.

Discovery는 또한 플랫 플러드(Flat flood)능력-전자제어 잉크보충시스템-디지털 마이크로프로세서 에 의한
자가진단 기능등이 있습니다,

상측의 양면 로케이터는 작업자가 양면 작업시 어느 모퉁이로부터도 적재를 가능하게 하고
이동형 로드 테이블은 작은시료의 로딩에 편리합니다.

Discovery는 정지 위치에서 플러드바와 스퀴지에 잉크가 흐르거나 묻지 않도록 하며 앞뒤로 올리거나
움직일수 있어 플러드바나 스퀴지의 탈부착이 용이 합니다.

스퀴지 압력 조절기는 스퀴지 압력을 항상 일정하게 유지시켜 줍니다.
Discovery의 좌우 조그 셔틀은 프레스의 좌우 인덱싱을 가능 하도록 해 .
작업자가 테스트 프린팅시에 각각의 작업변경을 위해 라셋업할 필요 없이 스크린과 색상작업 정렬을 가능하게 해줍니다.

M&R의 특허인 진공 시스템은 프린트및 건조 공정중에 시료를 싱글 무빙 테이블에 안정되게 흡착하며
정밀한 인라인-인덱싱 테이블과 함께 사용하면 프린트및 건조공정 중 사용되는 특별시료에 대해서도
등록작업이가능합니다.

조정가능한 Blow-back은 Unload 스테이션 에서 작업자가 쉽게 언로딩 할수 있게끔 해주며
선택사양인 Take-Off시스템을 장착하면 생산성을 보다 높일수 있습니다.
선택사양인 Zoned Vacuum System은 작업자가 작업대 하부에 진공을 쉽고 신속하게 제어할 수 있도록 합니다.

Discovery 건조 시스템(Curing System)은 기본으로 300와트 램프를 제공합니다.
 선택사양으로 400와트가 있으며, M&R의 Switchback Cure System은 160부터 400 와트까지 조절할 수
있습니다.
Switchback은 세가지 타입의 자외선 램프(UV lamps): Mercury Vapor, Ferric (Iron) Oxide, and Gallium의 사양이 있습니다.






Central Off-Contact
Changes all printhead off-contacts within seconds
Electronically controlled from the main panel
Offers greater control over print quality
Servo driven
Certification
Panel meets Canadian Standards Association (CSA) standards and carries the CSA label
Panel meets Underwriters Laboratories?(UL) standards and carries the UL label
Color Capacity
1-8 colors (4 colors standard)
Control Center
Control panel offers easy navigation, with programming and prompts in plain language
Digital keypad with alphanumeric display
Digital microprocessor with self-diagnostics
Dwell and load station vacuum times are independently managed from the control panel
Foot pedal pauses machine cycle, releases vacuum at load table, and keeps paper locators firmly against vacuum bed
Jog left/right allows the press to index in either direction so that during proofing the operator can alter the order of screen/color application on test prints without having to tear down and set up for each variation
Production speed monitor for more accurate job costing
Cure System
300-watt UV Cure System with settings of 125, 200, 250, & 300 watts per linear inch
Delivers optimal cure to heat-sensitive and heat-resistant stock
Digital elapsed time meter monitors lamp life
Dual UV lamps are individually controlled
Design & Construction
Automatic oiler for chains and rails
Constructed of rigid steel & aluminum and premium components
Control panel is track-mounted, allowing it to be positioned anywhere along the front of the load station
Design provides superb operator access
Easy-access housing makes maintenance and lamp changing simple
Printheads maintain machine registration with four-post locking
Index System
Servo-driven index ensures accurate, smooth travel
Ink Dip System
Electronically adjustable ink retrieval system keeps ink in the print area (U.S. Patent No. 5,649,479)
Maximum Image Area
44" x 64" (112 x 163 cm)
Load Station
Above-table double-sided sheet locator allows operator to load from any corner for double-sided work
Adjustable vacuum and blowback
Moveable load table simplifies the loading of smaller substrates
Off-Contact
Four-corner off-contact settings allow quick and accurate screen leveling
Tool-free off-contact adjustment
Zero off-contact capability offers greater control over print quality
Peel System
Automatically synchronized gear-driven peel
Flat flood capability
Infinitely adjustable within range
Print Carriage
Adjustable, tool-free front and rear sensors located on the printhead
Carriage high-lift setting allows users to unload screens while leaving squeegees and floodbars in the machine, reducing setup and teardown times
Dynamic braking prevents the print carriage from drifting into the printing area
Hardened steel tracks provide years of smooth, vibration-free printing
Heavy-duty design
Independent drives for print carriage and head lift
Registration
Inline indexing table maintains excellent registration throughout printing and curing cycles
Master frame with micro-register adjustments and visual guides allow quick and easy setup
Screen Clamps & Holders
Adjustable screen holders
Front screen loading makes fast screen changes possible
Pneumatic screen clamps facilitate rapid screen loading and deliver excellent stability on a wide variety of screens
Squeegee/Floodbar
Calibrated independent and micro-adjustable pressure settings
Park position allows floodbar and squeegee to be raised and moved to the front or rear without flooding or printing, and allows easy squeegee and floodbar installation and removal
Pneumatic squeegee/floodbar locks
Squeegee and floodbar traverse speeds can be set individually
Squeegee pressure equalizer regulator ensures uniform squeegee pressure
Tool-free pressure and angle adjustments are independently set for superior print quality
Vacuum System
Adjustable blowback aids operator in unloading stock
CNC-drilled 1_?(4.22 cm) thick heavy-gauge anodized aluminum vacuum bed
High-volume vacuum turbine system easily adjusts to different stock type and thickness
Self-contained vacuum system
Vacuum and blowback are each independent and adjustable
Vacuum track holds substrates securely during print and high-speed transport operations
Service
24-hour hotline
Training
Access to M&R뭩 Training Center
Warranty
One-year limited



Certification
CE Compliant: Built to specifications established by the European Committee for Standardization?(CE)
Control Center
Modem with cable and module enable remote diagnosis by M&R Technical Support
MPR (Management Production Reporting) Software System?provides press status and production data in real time, giving facility managers the information they need to maximize efficiency
Cure System
400-watt UV Cure System with settings of 160, 200, 300, & 400 watts per linear inch
Infrared panel for heat transfer substrates
Switchback?UV Cure option is infinitely adjustable from 160 to 400 watts per linear inch, and accepts three types of UV lamps (Ferric (Iron) Oxide, Gallium, & Mercury Vapor), allowing operators to select the optimal curing source and intensity for even the most difficult ink/substrate combinations
Squeegee/Floodbar
Dripless squeegee attachment automatically flips to the opposite direction against the front of the floodbar before the flood stroke begins, preventing ink from dripping into the image area
Takeoff System
Automatic takeoff
Vacuum System
Zoned vacuum beds end the need for tape by allowing operators to limit vacuum to the area under the substrate





See Discovery Product Sheet for specifications.
