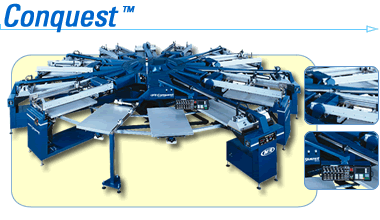

Conquest UV carousel printing system
은 다기능의 멀티칼러 자외선 건조방식 회전 콘베이어형 프린팅시스템입니다.
이 시스템은 6가지 색상을 동시에 프린트및 건조 시킬수 있어 비용과 인력을 절감할수 있습니다,
건조시키기위해 쌓아 놓을 필요가 없어 쌓아놓기 어려운 시료나 깨지기 쉬운 유리같은 시료의 작업에도 효율적입니다.
프린트작업을 1Cycle에 완료시킬수 있으며
컬러 프린트작업시 설정된 내용의 저장이 가능하며 작업내용의 변경저장도 가능합니다.
시료의 일부분 프린트작업도 시료의 절단이나 훼손없이 진행시킬수 있습니다.
각각의 UV건조 스테이션은 독립적으로 동작합니다.
Conquest 시스템이 Print 하는 동안 UV Head가 시료위를 지나며 수간적으로 건조 시키게 됩니다.
이방법은 고정된 head에비해 작업속도를 빨리할수 있는 이점이 있습니다.
고정된 헤드에서는 건조시간을 늘리려면 작업대의 회전속도를 늦춰야 하는데 이는 작업속도의 저하를 가져와
비효율 적이 됩니다.
300와트의 출력으로 작동하는 6개의 스테이션은 독립적또는 통합적으로 동작하며 스피드 조절이 가능합니다.
Linear 인치당 125, 200, 250 , 300와트를 세팅하여 사용할수 있습니다.
더큰 용량을 위해서는 400와트 시스템을 리니어 인치당 160, 200, 300 ,400 와트를 선택 사용 가능합니다.
그리고 3가지 램프타입(Ferric (Iron) Oxide/ Gallium/ and Mercury Vapor (standard))을
선택할수 있는
Optional 스위치백 시스템을 선택할수 있습니다:160~400W/Linear Inch 까지 미세조정 가능
이런 다양성은 다른 회전 프린팅 시스템에서는 찾기 힘든 기능 입니다.
Conquest Systems은 3가지 작업범위 64 x 97 cm/ 76 x 102 cm/ 97 x 127 cm 가 가능 합니다.
고강도의 합금과 고내구성의 부품으로 구성되어 있어 소음이 적고 장기간 고효율의 성능을 보장합니다.
Certification
Panel listed by Underwriter's Laboratories?(UL)
Color Capacity
Print and cure up to 6 colors in one system cycle
Control Center
Digital keypad with alphanumeric display
Digital microprocessor with self-diagnostics
Flood/non-flood setting leaves screen flooded or non-flooded after print
cycle
Foot pedal independently controls press and vacuum for hard to feed substrates
Jog left/jog right enables operators to move beds left or right, either
at each head or at the control panel
Production speed monitor for more accurate job costing
Curing & Bulb Management
Bulb types available are Mercury Vapor (standard) and뾵ith the optional
Switchback System뾈erric (Iron) Oxide (optional), and Gallium (optional)
Elapsed digital time meter monitors bulb life
UV heads are independently controlled for maximum flexibility
UV housing provides easy bulb access
UV settings of 125, 200, 250, and 300 watts per linear inch standard (optional
systems provide up to 400 watts)
Design & Construction
Constructed of rigid steel and aluminum and high-quality components
Heavy-duty chatter-free print carriage
Maintenance-free AC motors
Index System
Sophisticated servo-driven index insures accurate, smooth travel, even
at top speeds
Ink Dip System
Retrieval system keeps ink in print area (Patent #5,649,479)
Peel
Automatically synchronized gear-driven peel
Flat flood feature
Infinitely adjustable within range
Print Sizes Available
25" x 38" (64 x 97 cm), 30" x 40" (76 x 102 cm), &
38?x 50?(97 x 127 cm)
Print Stroke Sensors
Adjustable front and rear sensors
Registration
Master frame with micro-registration adjustments and visual guides allow
quick and easy setup
Safety
Infrared light curtain and/or mats protect operators by stopping press
when activated
Safety gates positioned between each head
Screen Clamps & Holders
Adjustable screen holders accommodate a wide variety of screen sizes
Pneumatic screen clamps facilitate rapid screen loading and deliver unmatched
stability on a wide variety of screens
Squeegees/Floodbars
Adjustable pneumatic squeegee pressure equalizer maintains uniform pressure
across length of squeegee
Calibrated pressure and angle adjustments are independently set for superior
print quality
Independent print/flood speed controls
Pneumatic squeegee/floodbar air locks (includes tool-free angle adjustment)
Tool-free squeegee/floodbar angle adjustment
UV Heads
Each cure unit has independent wattage and traverse speed settings
Unique multi-pass capability
UV units shuttle across substrates concurrent with print strokes to sustain
cycle speed and provide uniform coverage
Vacuum System
CNC-drilled 1.66?(4.2 cm) high heavy-gauge anodized aluminum vacuum bed,
engineered to stay flat
High-volume vacuum turbine system easily adjusts to different stock types
and thickness
Service
24-hour hotline
Training
Access to M&R's Training Center
Warranty
One-year limited
Certification
CE Compliant (Built to specifications established by the European Committee
for Standardization?
Control Center
Management Production Reporting Software System
Modem with cable and module
Curing & Bulb Management
400-watt UV Cure System with settings of 160, 200, 300, & 400 watts
per linear inch
Switchback UV Cure System is infinitely adjustable from 160 to 400-watts
per linear inch and accepts three types of infinitely adjustable UV bulbs
(Ferric (Iron) Oxide, Gallium, & Mercury Vapor), allowing operators
to select the optimal curing source and intensity for even the most difficult
ink/substrate combinations
Electrical
Optional voltages available
Sheet locators
3-point pneumatically controlled pin locator
Double sided sheet locator
| Model |
Maximum Image |
Maximum OD Frame Size |
Diameter |
Air @100 PSI |
| Conquest 2538 |
25?x 38?64 x 97 cm) |
44?x 58?x 2?112 x 147 x 5 cm) |
28?3?8.61 m) |
12 scfm |
| Conquest 3040 |
30?x 40?76 x 102 cm) |
44?x 58?x 2?112 x 147 x 5 cm) |
28?3?8.61 m) |
12 scfm |
| Conquest 3850 |
38?x 50?97 x 127 cm) |
68?x 52?173 x 132 cm) |
33?2?10.11 m) |
12 scfm |
| ?/td>
| Electrical Requirements* @ 3-phase, 50/60
Hz |
?/td> |
| Model |
208/230v |
380v |
480v |
Weight |
| Conquest 2538 |
246/225 amps |
135amps |
105amps |
17,000 lbs(7,711 kg) |
| Conquest 3040 |
265/253 amps |
150amps |
120amps |
18,000 lbs(8,165 kg) |
| Conquest 3850 |
310/290amps |
180amps |
140amps |
20,000 lbs(9072 kg) |
* If incoming voltage differs from the voltage(s) listed
in this brochure, calculate amperage accordingly
MultiGraphics
Charlotte, North Carolina
"The M&R Conquest is probably the best investment we have made.
We are getting more jobs and producing them up to 10 times faster with
higher quality and lower scrap rates. For 4-color process work, this machine
is a dream!"
Harvey DuPriest & Sons, Inc.
Dallas, Texas
"M&R is extremely dependable. Our 6-color Conquest and our 5-color
54 x 120 Processor T are very reliable and have tripled our production
capabilities. Any future equipment will definitely be M&R."
|
