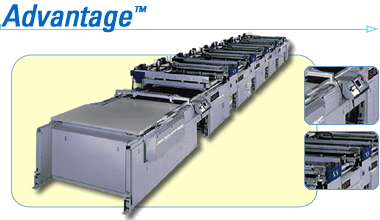

Advantage´ÂNuarcÀÇ Ã·´Ü ÀζóÀÎ ¸ÖƼĮ¶ó Àڿܼ± ÇÁ¸°ÆÃ/°ÇÁ¶(Å¥¾î¸µ)½Ã½ºÅÛ(Inline Multi-Color UV Print/Cure System)ÀÔ´Ï´Ù.
 ÀζóÀÎ µðÀÚÀÎÀ¸·Î ÀÎÇÏ¿© Advantage ´Â ºü¸¥ ¼Óµµ·Î 8°¡ÁöÀÇ Ä®¶ó±îÁö ÇÁ¸°Æ®ÇÏ°í °ÇÁ¶(Å¥¾î¸µ)½Ãų¼ö
ÀÖ¾î ½×À» ÇÊ¿ä¾øÀÌ ½Å¼ÓÇÑ󸮰¡ °¡´ÉÇÕ´Ï´Ù.
ó¸® °¡´ÉÇÑ À̹ÌÁö ¸éÀûÀº ÃÖ´ë 97 x 127 cmÀÔ´Ï´Ù.
 Advantage´Â »ç¿ëÀÚ°¡ °øÁ¤À» ¸Þ¸ð¸®¿¡ ÀúÀåÇÒ¼ö ÀÖ¾î ½±°Ô ´Ù¼öÀÇ °øÁ¤À» ó¸®ÇÏ°í ½ÃÇàÇÒ¼ö ÀÖµµ·Ï
¼³°èµÇ¾ú½À´Ï´Ù.
½ºÅ©¸°À» ÅëÇØ ¼¼¹ÐÇÑ ºÎºÐ±îÁö Æ©´×ÀÌ °¡´ÉÇϸç
M&RÀÇ Æ¯ÇãÃâ¿øµÈ Áø°ø ½Ã½ºÅÛÀº ½Ã·á¸¦ °øÁ¤µ¿¾È È®½ÇÇÏ°Ô °íÁ¤½ÃÄÑÁÝ´Ï´Ù.
°ß°íÇÑ º£Å¨ÇÁ·¹ÀÓÀº °øÁ¤ÁøÇൿ¾È ½Ã·á¸¦ °ß°íÇÏ°Ô °íÁ¤½ÃÄÑ ÁÝ´Ï´Ù.
Advantage UV cure systemÀº ·¥ÇÁÀÇ Ãâ·ÂÀ» ÀÎÄ¡´ç 400 watts ±îÁö Áõ°¡½Ãų¼ö ÀÖ½À´Ï´Ù.
¼¼Á¾·ùÀÇ ·¥ÇÁ·Î ±³È¯°¡´É ÇÏ¸ç ·¥ÇÁŸÀÔÀÌ ÀÚµ¿ ÀÎÁö µË´Ï´Ù.
·¥ÇÁÀÇ ¹úºêŸÀÔ ¼±ÅÃÀ»½ºÀ§Ä¡·Î °£´ÜÈ÷ ÇÒ¼ö ÀÖ°í
Advantage´ÂÅ¥¾î¸µ´É·ÂÀ» Áõ´ë½Ãų¼ö ÀÖÀ¸¸ç reflector technology ·Î ½Ã·áÀÇcooling ¿¡µµ ¿ì¼öÇÕ´Ï´Ù



UV energy that would otherwise bounce back onto the curing lamp is directed to the substrate, while the open-top reflector draws ambient air across the substrate and vents heated air and ozone out the top. Since Advantage maximizes curing speed and minimizes substrate temperatures, operators can find a perfect match for virtually every curing requirement.

°í°­µµÀÇ Çձݰú °í³»±¸¼ºÀÇ ºÎÇ°À¸·Î ±¸¼ºµÇ¾î ÀÖ¾î ¼ÒÀ½ÀÌ Àû°í
Àå±â°£ °íÈ¿À²ÀÇ ¼º´ÉÀ» º¸ÀåÇÕ´Ï´Ù.




Certification
Panel meets Canadian Standards Association (CSA) standards and carries the CSA label
Color Capacity
1-8 colors (4 colors standard)
Control Center
Digital keypad with alphanumeric display
Digital microprocessor with self-diagnostics
Flood/non flood setting leaves screen flooded or non-flooded after print cycle
Foot pedal independently controls press and vacuum for hard to feed substrates
Head speed and stroke length adjustment electronically controlled from individual head or main control panel
Job Recall allows storage and recall of numerous standard and optional functions and settings, including electronically controlled dwell time, index speed, off-contact, peel ratio, print and flood stroke and speed, squeegee pressure (electronically adjusted air pressure), and wattage settings on UV cure units
Jog left/jog right enables operator to move beds left or right from each head and from the control panel
Production speed monitor for more accurate job costing
Squeegee speed, flood speed, and dwell times are independently controlled from control panel
Curing & Bulb Management
Bulb types available are Mercury Vapor (standard), Ferric (Iron) Oxide (optional), and Gallium (optional)
Change of bulb type requires no corresponding change of jumpers or fittings
Delivers optimal cure to heat-sensitive and heat-resistant stock
Digital elapsed time meter monitors bulb life
Dual UV lamps are each individually controlled at each print station and at main control panel
Hinged UV housing for easy bulb access
Infinitely adjustable UV bulbs
Switchback technology allows different bulbs for different substrates.
UV Settings are infinitely adjustable electronically from 160-400 watts per linear inch
Design & Construction
Maintenance-free servo motors
Print heads maintain machine registration with four-post locking
Rigid steel and aluminum construction
Index System
Servo-driven index insures accurate, smooth travel
Ink Dip System
Retrieval system keeps ink in print area (U.S. Patent No. 5,649,479)
Off-Contact Settings
Manually adjustable tool-free, four corner off-contact settings allow quick and accurate screen placement at all four corners
Once set, off-contact can be adjusted by a single knob at the front of the print head
Zero off-contact capability offers greater control over print quality
Peel
Automatically synchronized gear-driven peel
Flat flood feature
Infinitely adjustable within range
Print Carriage
Heavy-duty chatter-free design
Sophisticated servo-driven carriage insures accurate, smooth travel
Stroke length adjusted from head or main control panels
Registration
Inline indexing table maintains excellent registration throughout printing and curing cycles
Master frame with micro-register adjustments and visual guides allow quick and easy setup
Patented locator system assures high tolerance printing
Sheet Locator System with above-table sheet guides that support fast, accurate loading and alignment of substrates
Screen Clamps
Pneumatic clamps securely lock frame in place
Screen Holders
Adjustable screen holders accommodate a wide variety of screen sizes
Front screen loading for fast screen changes
Squeegees/Floodbars
Calibrated independent and micro-adjustable pressure settings
Electronic and recallable adjustable pneumatic squeegee pressure equalizer maintains uniform pressure across length of squeegee
Park position allows flood and squeegee to be raised and moved to front or rear without flooding or printing, and allows easy squeegee and floodbar installation and removal
Pneumatic squeegee/floodbar air locks (includes tool-free angle adjustment)
Pressure and angle adjustments independently set for superior print quality
Substrate Management
Substrates from the ultra-thin to heavy board stock
Vacuum System
Adjustable blowback at unload station
CNC-drilled 1 1/8?(2.86 cm) high heavy-gauge anodized aluminum vacuum bed, engineered to stay flat
High-volume vacuum turbine system easily adjusts to different stock types and thickness
Vacuum track holds substrates securely during print and high-speed transport operations
Service
24-hour hotline
Training
Access to M&R’s Training Center
Warranty
One-year limited


Bulb Types
Gallium
Ferric (Iron) Oxide
Certification
CE Compliant: Built to specifications established by the European Committee for Standardization?(CE)
CSA listing
Control Center
Management Production Software
Modem with cable and module
Electrical
Other voltages available
Electronics Package
Electronically driven servo peel
Electronic servo driven central off-contact
Electronic servo micro-registration system with zero-out capability
Squeegee
Dripless squeegee attachment automatically flips to opposite direction against front of floodbar before flood stroke begins, preventing ink from dripping
Takeoff System
Automatic takeoff




Model Print Stations Maximum Image Maximum OD Frame Size Overall Size
Advantage 3850-4 4 38?x 50?br> (97 x 127 cm) 76?x 54?x 2.5"
(193 x 137 x 6.4 cm)
54?x 46" x 64"
(16.2 x 2.57 x 1.63m)

UV Lamps Length of Additional Print/Cure Stations Additional Colors Available Air
@ 100
PSI**
Electrical Requirements*
8 8?9?br> (2.67 m) 4 33 scfm 460v, 3 phase 374 amps, 50/60 Hz

* If incoming voltage differs from the voltage(s) listed in this brochure, calculate amperage accordingly
** Each additional print station adds 8.2 scfm
